Vmanage authentication

Background

All interactions with vmanage require a valid token which is dynamically generated during the user login process. This workflow is to retrieve the token for further operations against a vmanage by mimic the user login.

Inputs

• Vmanage username
• Vmanage password

Output

A valid return should contain both JSESSIONID and X-XSRF-TOKEN whose values are changing each time.

[
  {
    "auth_success": true,
    "JSESSIONID": "JSESSIONID=27EX7Wy3vdChNnoz4c-b8L6KIJF7HWvZuwiSNCP-.d9a48f51-9796-47ca-b438-b444bb0bb943",
    "X-XSRF-TOKEN": "A271521C1FFD610F3BDC0DC404BB83A591CA3E3722E01DA2E9D0ECF4C779D89671B34F14037E19B54BDB2270F5457C90B000",
    "headers": {
      "cache-control": "no-cache, no-store, must-revalidate",
      "x-xss-protection": "1; mode=block",
      "pragma": "no-cache",
      "x-frame-options": "DENY",
      "date": "Fri, 19 Jan 2024 01:12:18 GMT",
      "vary": "Accept-Encoding",
      "strict-transport-security": "max-age=31536000; includeSubDomains",
      "x-content-type-options": "nosniff",
      "content-type": "application/json",
      "server": "svcproxy",
      "connection": "close",
      "transfer-encoding": "chunked"
    },
    "statusCode": 200,
    "statusMessage": "OK"
  }
]

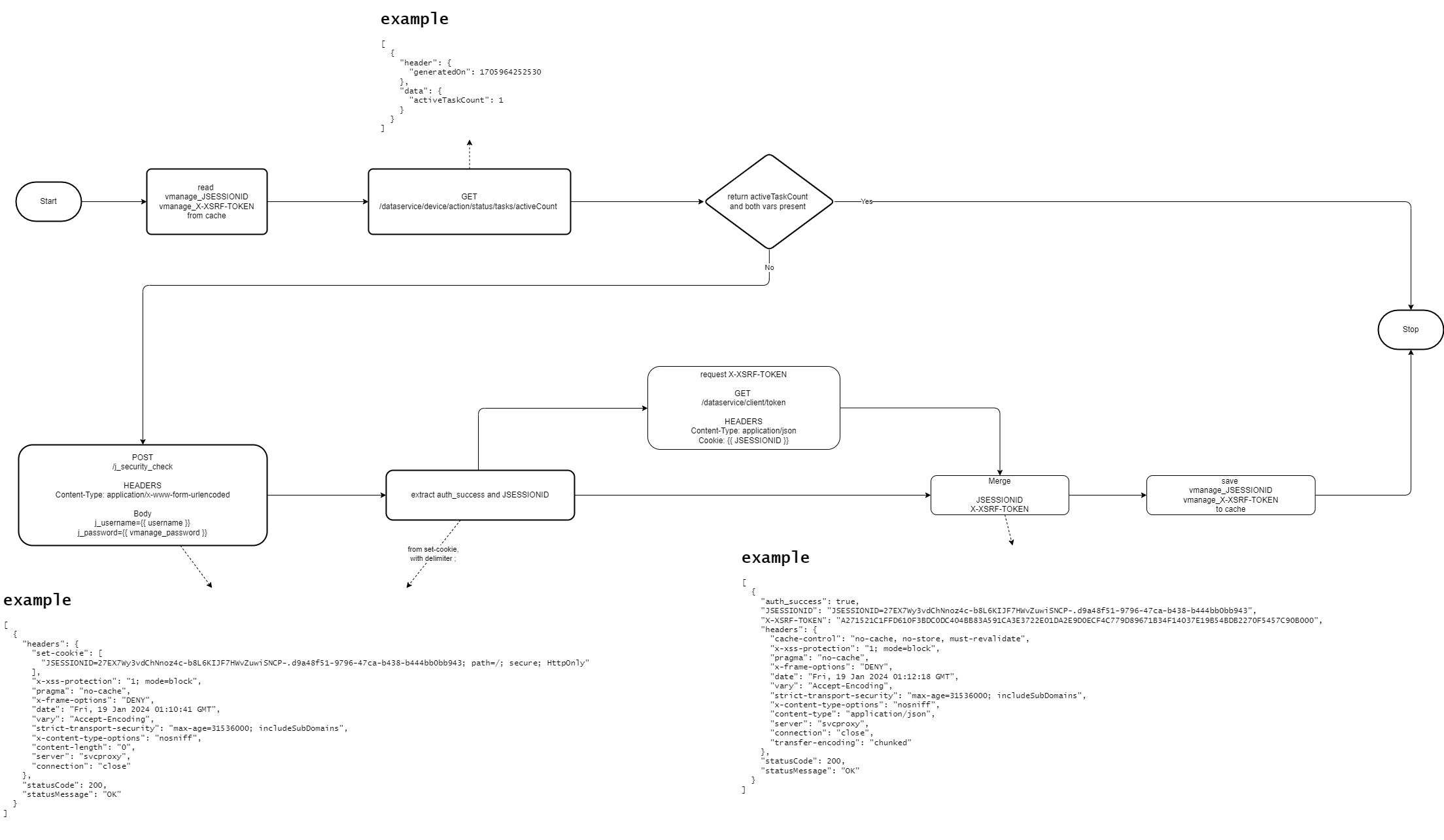

Workflow
